Product benefits
Low flickering enables high light quality as well as good visual comfort
Push DIM application for easy control
High-quality dimming of 1…100 %
Suitable for emergency lighting
5 years guarantee
Areas of application
Suitable for indoor installations
Suitable for use in emergency lighting systems (DC capable)
Installation via Cable Clamp Kit possible (depending on version of product)
Linear lighting for office, education, storage areas and retail
Product features
1 channel DALI-2 certified LED driver
Supply voltage: 200…240 V
Operated with Safety extra-low voltage (SELV): < 60 V
Available with output current range: up to 1,400 mA
Type of installation: independent and built-in

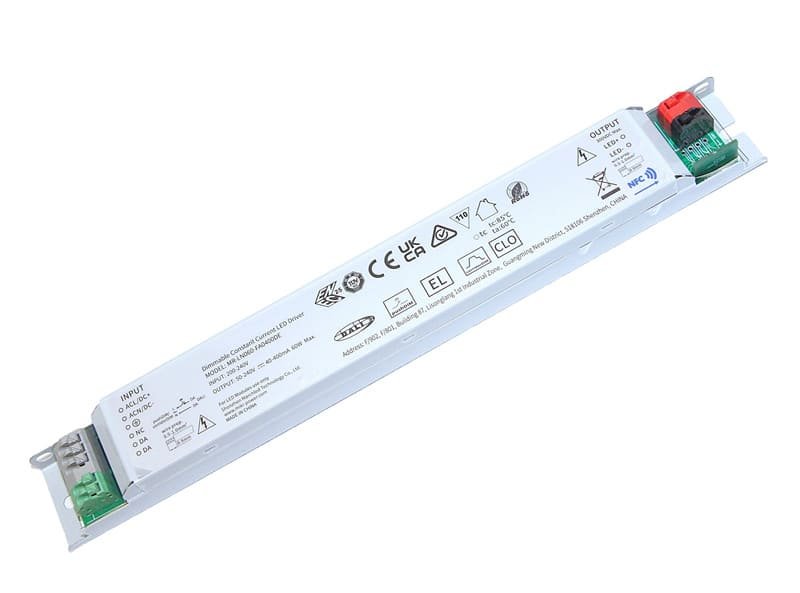

60W DALI Dimmable Linear LED Driver
Model: MR-LN060-FA0400DE
LUMIDRIVA’s’ DALI Intelligent driver is ideal for Office, Architecture, and Commercial Lighting applications. Dimming one channel on the driver via DALI dimming equipment.
Product Feature
– Input and output non-isolated
– Support DALI-2+pushDIM dimming mode
– Standby power input < 0.3W
– Support advanced functions such as EL, corridorDIM, CLO
-Dimming performance: 1%→100% dimming range,
-NFC Programming
– Soft dimming and flicker-free at any brightness, meets the requirements of ErP certification
– High PF, high efficiency, low THD
-Supports i-Data function (DALI part 251, 252, 253, luminaire data, energy reporting, diagnostic and maintenance)
-The output current programming and and parameter configuration can be realized through the DALI interface and the NFC interface
– Certificate: CE,ENEC,UKCA,RCM,EL,DALI-2
– Constant power design, compatible with wide load output
– Nominal life-time up to 100,000 h, 5-year guarantee
